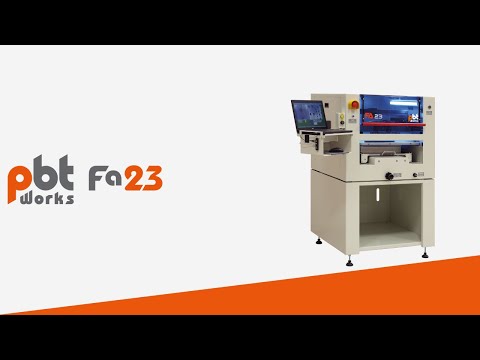

Fa23 – Auto Alignment Stencil Printer

Stencil Printers

Details / Get a Quote

Product information

Semi-automatic programmable highly precise and flexible off line stencil printer.
Suitable for SMT production with automatic camera guided alignment.

Features

  • Compact size and small footprint
  • Quick PCB changes due to convenient drawer
  • Fast product changeover
  • Manual or automatic camera guided stencil to pad alignment
  • Digital filtration of unwanted reflections or shapes on the pads chosen for alignment
  • X, Y, Theta playless table adjustment
  • Quick stencil clamping with pneumatic fixation
  • Three-position squeegee height control for quick stencil changes
  • Complete set of magnetic PCB fixturing
  • Support bars adjustable to PCBA thickness
  • Object space up to component height 63,5 mm
  • Programmable printing pressure control
  • Programmable board from stencil separation speed
  • Adjustable separation distance
  • Adjustable upper position of the table
  • Very smooth pneu-hydraulic synchronized table separation motion
  • Programmable print speed and adjustable squeegee range
  • Integrated underside cleaning system

Applications

  • Small to middle series production
  • Printing solder paste
  • Printing SMD glue
  • Printing thermoconductive paste
  • Print on ceramics, foils, metals
  • Print area 410×390 mm
  • Frame capacity 680×584 mm
