Go Series – Semi-Automatic Stencil Printers
Semi-automatic programmable highly precise and flexible off-line stencil printers. Suitable for LED production with camera guided alignment. Three models of Go Printers available to cover complete range of applications. Each model comes with metal stand and full package of features. Basic set of adjustable production tooling included.

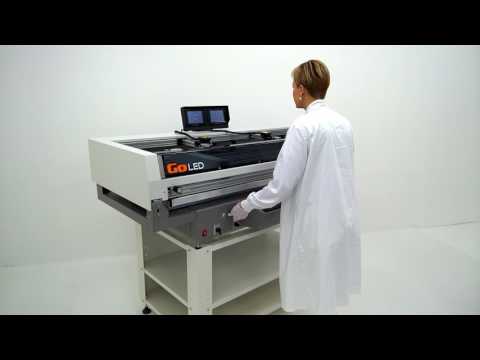

GoLED
Features:
- Compact size and small footprint
- Quick PCB changes
- Fast product changeover
- Camera guided through stencil alignment
- Playless precise alignment
- X, Y, Theta adjustment
- Power assisted upper frame opening
- Rubber based vacuum table
- Adjustable stencil clamping
- Adjustable printing pressure
- Programmable board from stencil separation distance and speed
- Robust synchronized table separation motion
- Programmable print speed and squeegee range
Applications
- Small series production
- Prototyping and new product development
- Printing solder paste
- Printing SMD glue
- Printing thermoconductive paste
- Screenprinting of inks
- Thick film printing, printed electronics screenprint
- Print on ceramics, foils, metals
- Print area 600×540 mm
- Frame capacity 780×762 mm

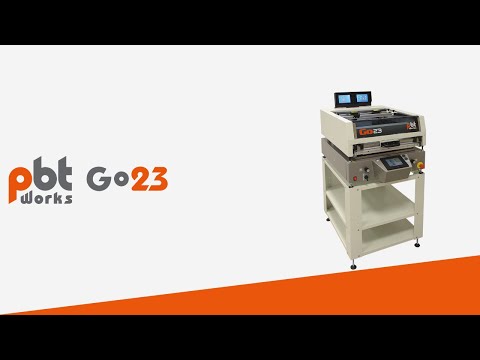

Go29 and Go23
Features:
- Compact size and small footprint
- Quick PCB changes
- Smart design
- Fast product changeover
- Camera guided stencil to pad alignment
- X, Y, Theta playless table adjustment
- Power assisted upper frame opening
- Adjustable stencil clamping with pneumatic fixation
- Three position squeegee height control for quick stencil changes
- Patent pending no-tool squeegee changes
- Complete set of magnetic PCB fixturing
- Support bars adjustable to PCBA thickness
- Object space up to component height 23,5 mm
- Adjustable printing pressure
- Programmable board from stencil separation distance and speed
- Robust synchronized table separation motion
- Programmable print speed and squeegee range
Applications:
- Small series production
- Prototyping and new product development
- Printing solder paste
- Printing SMD glue
- Printing thermoconductive paste
- Screenprinting of inks
- Thick film printing, printed electronics screenprint
- Print on ceramics, foils, metals
- Go 29”: Print area 600×540 mm
- Go 29”: Frame capacity 780×762 mm
- Go 23”: Print area 440×400 mm
- Go 23”: Frame capacity 610×650 mm
